Features
SUSPENSION ELLIPTICAL TECHNOLOGY
- Suspension Elliptical Technology features a wheel- and track-free design to reduce noise and friction for long-lasting quality while providing a smooth, consistent feel through the ellipse.
COMPACT DESIGN
- A compact footprint makes it easy to integrate our elliptical into your home with minimal rearranging, even when space is limited.
SMART ERGONOMICS
- An ideal stride length and optimized pedal spacing provide comfortable movement for users of all sizes, a low step-on height of just 23 cm / 9.1″ offers easy access, dual-action handlebars fit the hand naturally, and oversized pedals make even long workouts comfortable.
CONVENIENCE FEATURES
- Includes water bottle holder, accessory tray, heart rate grips, resistance toggles, dual-action handlebars and oversized pedals.
SPECIFICATIONS
FRAME
- Frame Type – Suspension Elliptical Trainer
- Stride Length – 51 cm / 20″
- Step-on Height – 23 cm / 9.1″
- Power Incline – N/A
- Flywheel Weight – 10.5 kg/ 23.1 lbs
- Resistance System – ECB magnetic braking system
- Resistance Range – 20 levels, electronically adjustable
- Pedal Type – Oversized
- Pedal Spacing – 63.5 mm / 2.5″
- Handle Bar Type – Dual action, stationary with resistance toggles and heart rate grips
- Extras – Water bottle holder, accessory tray
CONSOLE
| CONSOLE SPECS | XR – SIMPLE | XIR – ULTIMATE |

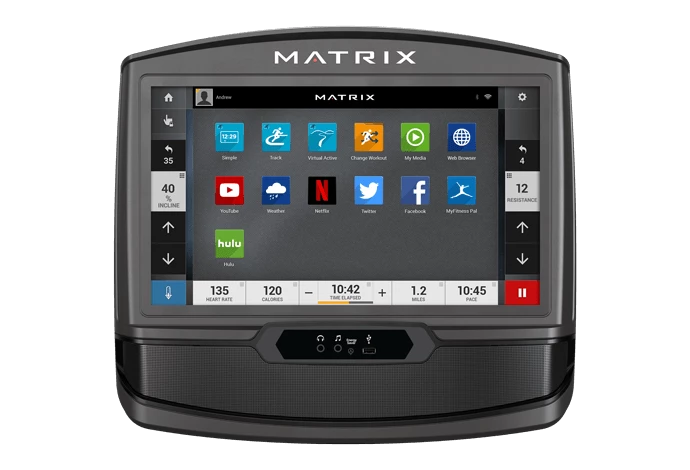

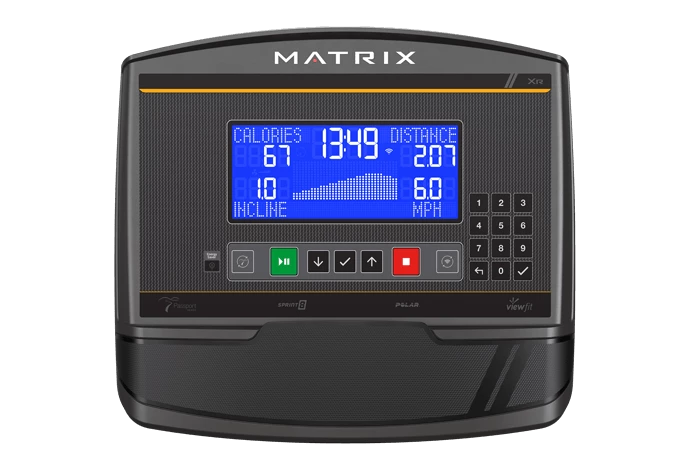

| Display | 8.5” Extra-wide blue LCD (22cm) | 16″ class HD touchscreen |
| WiFi Enabled | Software updates, ViewFit Connectivity | Software updates, ViewFit Connectivity, entertainment apps |
| Bluetooth Enabled | No | Stream audio from phone, tablet, mp3 player; connect wireless headphones; connect wireless heart rate monitor |
| USB Port | Internal USB port for software updates | Software updates, charge device (up to 1 amp); stream media via USB flash drives, Windows phones / tablets, Android phones / tablets |
| Speakers | No | 5 Watt |
| Console Apps | No | Simple, Track, Virtual Active, Change Workout, Weather, MyMedia, Web Browser (other apps vary by market) |
| Virtual Active Integrated | No | Yes |
| Passport Ready | Yes | Yes |
| ViewFit Connectivity | Yes | yes |
| Heart Rate | Wireless heart rate, Polar compatible | Wireless heart rate, Polar heart rate strap included |
| Console Extras | Integrated reading rack, energy saver mode | Integrated reading rack, energy saver mode, audio in / out |
| Workout Programs | 5 Total – Manual, Intervals, Fat Burn, Target HR, Sprint 8 | 11 Total — Manual, Intervals, Rolling Hills, Fat Burn, Time Goal, Distance Goal, Calorie Goal, Target HR, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies
|
| Workout Feedback | Time Elapsed, Time Remaining, Miles/Kilometres, RPM, Pace, Heart Rate, Calories, METS, Incline, Resistance | Time Elapsed, Time Goal, Time Remaining, Clock, Miles / Kilometres, RPM, Current Speed (MPH/KPH), Pace, Average Pace, Heart Rate, Peak Heart Rate, Calories, Calories / Hour, METS, Incline, Previous Incline, Resistance, Previous Resistance |
TECH SPECS
- Assembled Dimensions – (L x W x H) 146 x 74 x 172 cm / 57.5″ x 29.5″ x 67.8″ (Active Footprint 175 x 74 x 172 cm / 68.9″ x29.5″ x 67.8″)
- Assembled Weight – 129 kg / 284lbs.
- User Weight Capacity – 147 kg/ 325lbs.
- Electrical Requirements – 120V AC power, 15A circuit (voltage may vary outside the USA)
- Power Supply – 12V / 2A Power Adapter
DOWNLOAD PRODUCT BROCHURE HERE
